vaporaReports and exports
outputs/<run-id>/
scan.json
analysis.json
probable-friends.csv
run.log
gephi/
nodes.csv
edges.csv
history.json # when attachedscan.json holds settings, profile observations and the resume frontier. analysis.json holds metrics, rankings and coverage. run.log holds timestamped progress and diagnostic details.
| CSV | Columns |
|---|---|
gephi/nodes.csv | Id, Label, degree, betweenness, modularity_class, is_seed, is_hub, is_banned, vac_bans, is_public |
gephi/edges.csv | Source, Target, Kind with friend or group |
probable-friends.csv | candidate_steamid, name, score, evidence_score, undirected_mutual_count, incoming_mutual_count, authored_count_index, admitted, jaccard_with_seed, shared_groups, shared_games, friends_status |
CSV fields are quoted when needed, and formula-like text is escaped for spreadsheet imports. Steam IDs stay strings in JSON; set spreadsheet ID columns to text.
Interpretation and availability
Id, Source, Target and candidate identifiers are SteamID64 strings. modularity_class maps to graph community; is_hub uses the configured betweenness percentile. vac_bans is an observed VAC count; unavailable ban observations are not confirmed clean records.
admitted distinguishes ranking candidates inside the graph cap. incoming_mutual_count differs from undirected mutuals; score and evidence_score currently contain the same bounded combined index. See scoring.
Optional history.json contains merged, reimportable history with original captures. History format explains identity and date preservation.
Obsidian vault

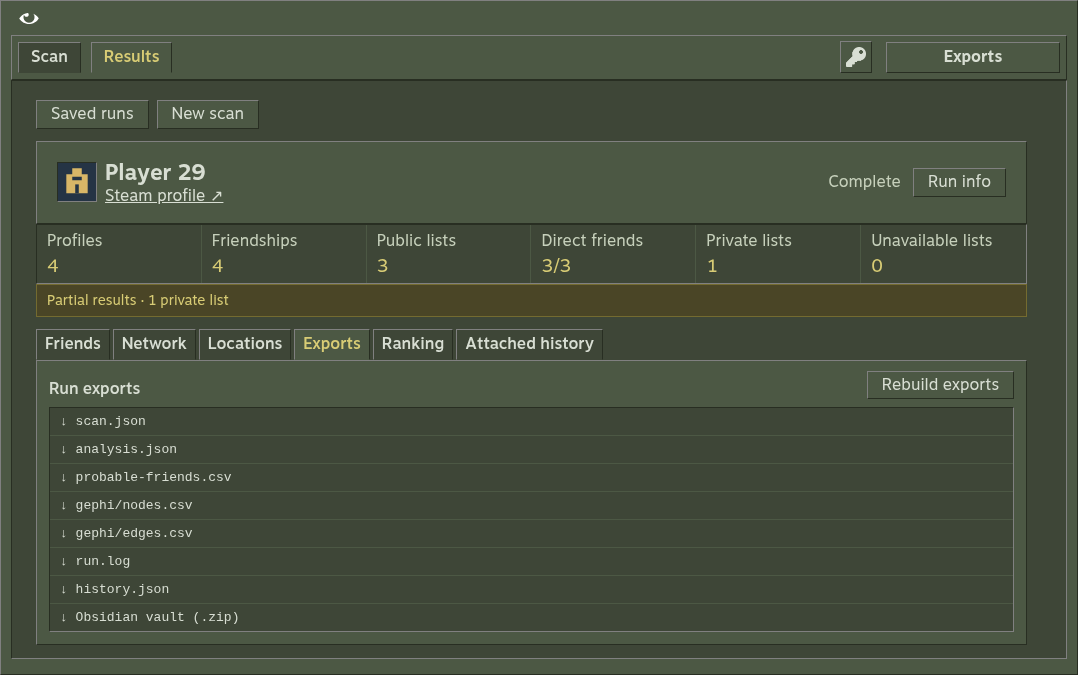

Download Obsidian vault (.zip) from Exports. Extract it and open the folder as a vault, or copy the notes into an existing vault. No plugin is required.
Vapora.mdrecords the target, run status, coverage and limits.Profiles/<SteamID64>.mdstores profile properties and observed friendship links. Names appear as aliases, so renaming a person does not break the links.History.md, when available, keeps dated friendship and comment observations. Shared-group links stay separate from friendships.
Unknown observations stay unknown. Exporting reads the saved run, leaves its checkpoint unchanged and makes no Steam requests.
Rebuild
Exports → Rebuild exports regenerates reports/CSV for a completed run offline, retaining checkpoint bytes and attached history. npm start -- analyze RUN_ID rebuilds from saved observations. No API key is needed. Incomplete runs and concurrent operations reject export rebuilding.
The browser download surface only exposes known run artifacts. Desktop Open output folder opens the selected run or outputs root.
